PC Bite - PCB Holder

Sensepeek PCB Loaded wit Probes and PCB

PCBite the solution for soldering, inspection and handsfree measurements

PCBite is a complete line of products handling your circuit board during the development phase. Powerful magnets together with a stainless base plate makes the system flexible, mobile and user friendly.

Forget about the old stationary circuit board holders placed deep inside the company lab, we have developed a mobile and user friendly solution made for a fast phase development environment. Let your circuit board travel safety on board our PCBite thru the development and save a lot of time and hassle.

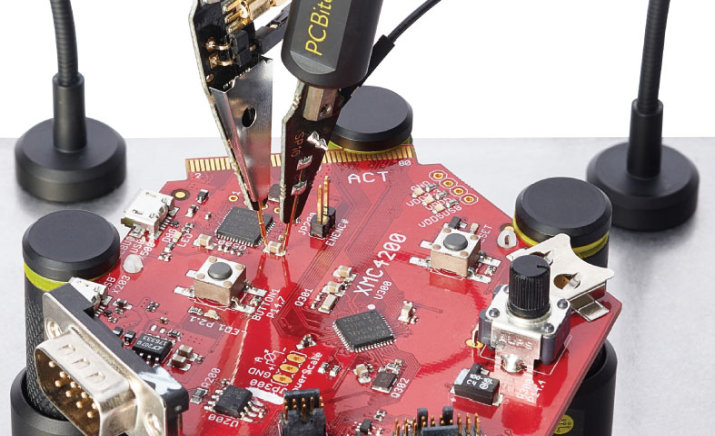

Small PCB with Croc clips to measure

PC Bite Loaded for Soldering

USD Pricing and product details here:
https://www.interworldna.com/PriceLists/pricelist_main.php?catName=Sensepeek&ct=2

Canadian Pricing and product details here:
https://www.interworldna.com/PriceLists/pricelist_main.php?catName=Sensepeek&ct=1

To See individual product details, click the pricing link above, then click on the part number on the left of the
description to see details of the applicable item. Add item of interest to the cart.

PCBite PCB holders

The holder can easily be repositioned to handle circuit boards of varying shape and sizes.

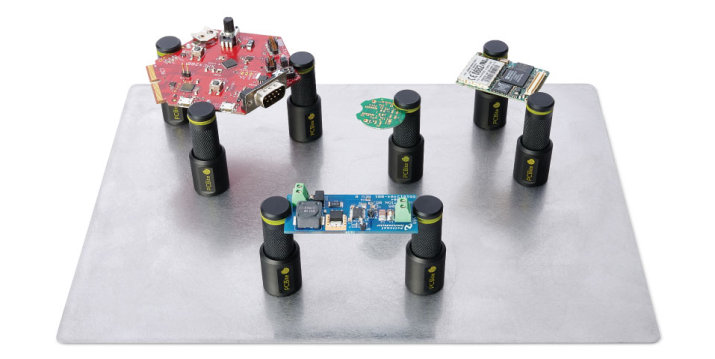

PCBite with multiple boards loaded

The holders are first CNC machined from 6061 grade aluminium then sandblasted and finally anodized black matte to get that perfect look and feel. At the bottom of each holder is a strong magnet perfectly balanced in strength. A low friction bottom cap protects the magnet and makes the PCBite holder easy to slide. The “jaw” can open wide and a stainless spring ensures a really strong locking force. Every holder comes with yellow insulation washers which protects your circuit board. The washers also allows you to power up your creation safely.

The probes

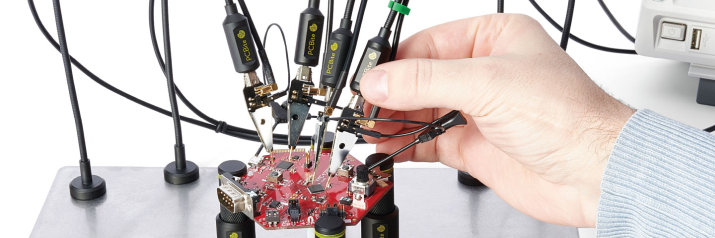

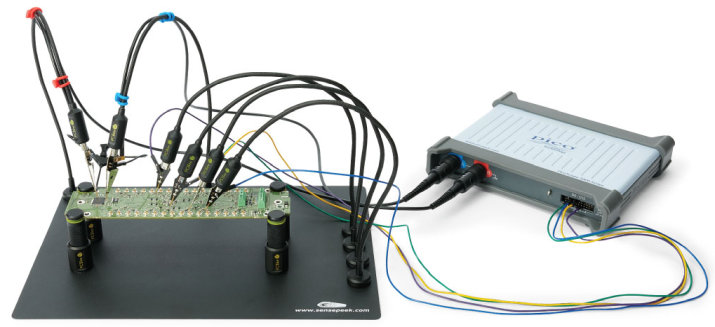

The probes are steady but yet flexible made for instant measurements or total hands-free operations together with your prefered measurement tools such as a multimeter, logic analyzer, debugger/programmer, MSO(mixed signal oscilloscope) or oscilloscope. PCBite Loaded and Connected to Picoscope

The probe has a flexible metal arm and a powerful magnet in the base for easy positioning. The one of the kind "lift and drop" function takes away the need for annoying and complicated set screws. The weight of the head makes the compressible needle maintain constant pressure at the probing point so even if the board is bumped into the probe tip will always stay in position. The measuring tip comes with a M4 thread interface for several mounting options.

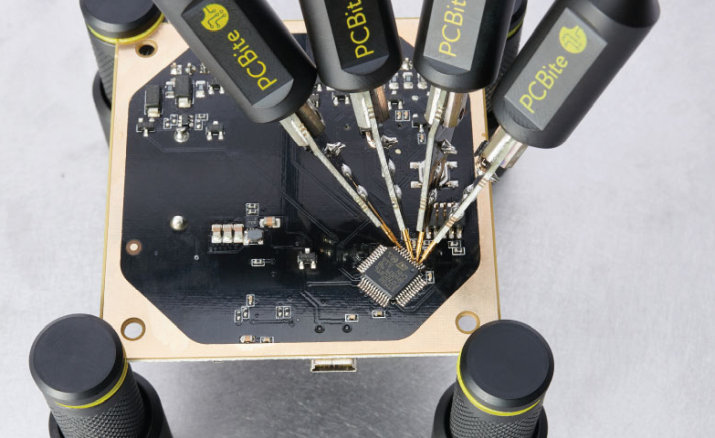

PCBite with probes connected to VLSI

PCBite

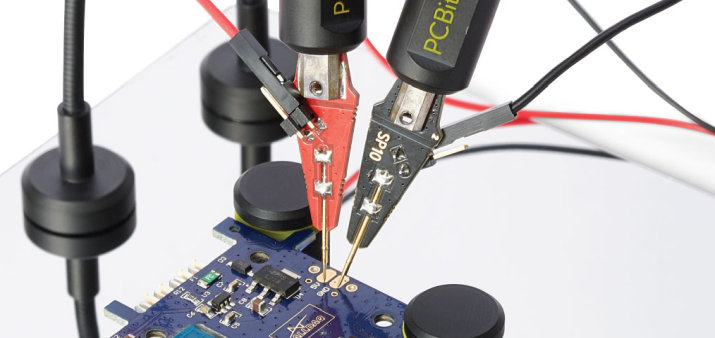

PCBite with SP10 Probe

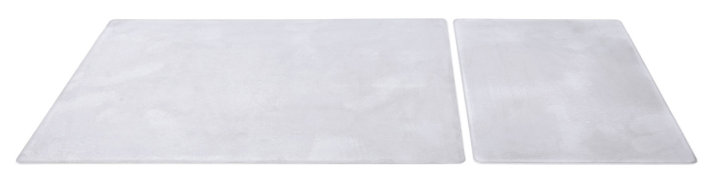

The base plate

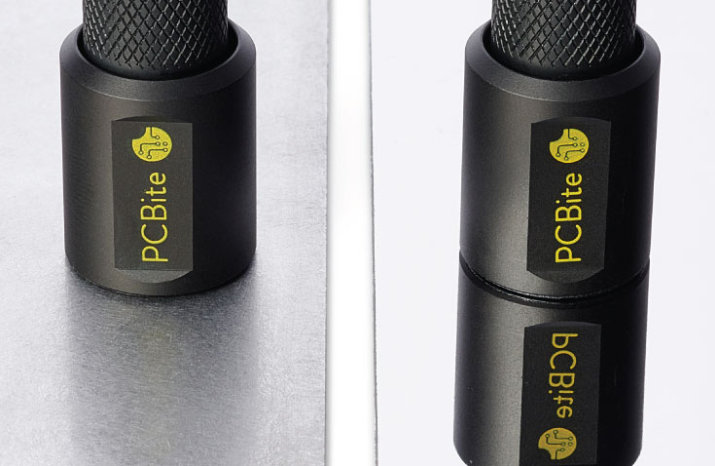

The base plate is made of stainless steel and comes in two sizes, small and large. One side of the plate is matte and the other mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. For added protection during measurement the insulation cover accessory can be mounted on one of the large baseplates surfaces. Every base plate comes with a microfiber cloth to keep it nice and shiny.

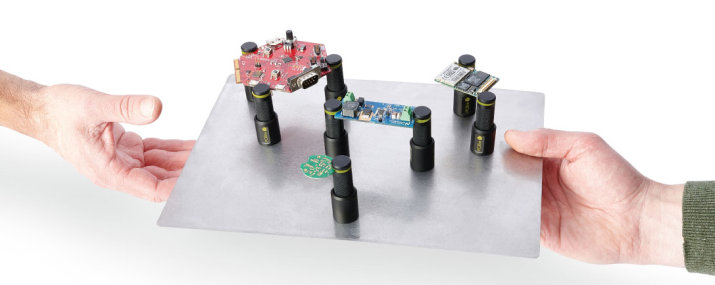

PCBite Hand Held

PCBIte Compatible Magnetic Holds

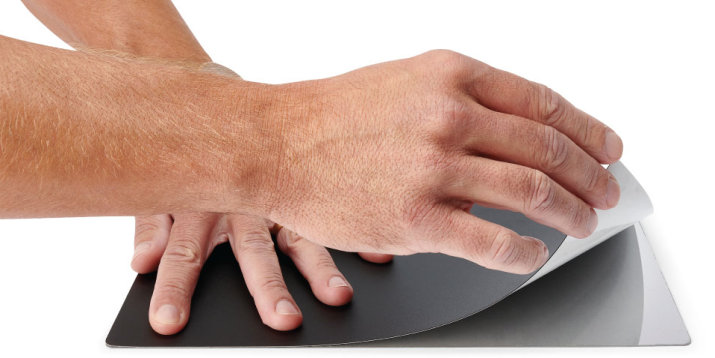

Insulation Cover Accessory mounted

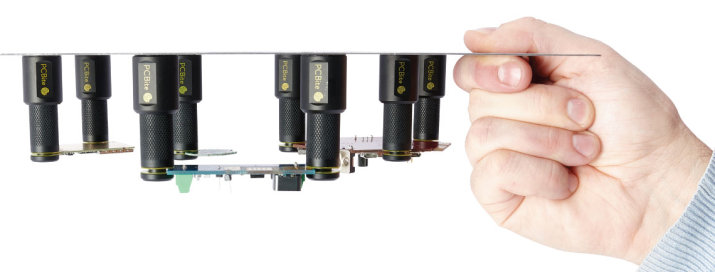

Upside Down illustrating magnetic force of posts

To Place an Order please go to our price list below after creating a login account,

then add the items to your cart and check out

USD Pricing and product details here:
https://www.interworldna.com/PriceLists/pricelist_main.php?catName=Sensepeek&ct=2

Canadian Dollar pricing and product details here:
https://www.interworldna.com/PriceLists/pricelist_main.php?catName=Sensepeek&ct=1

To See individual product details, click the pricing link above, then click on the part number on the left of the
description to see details of the applicable item. Add item of interest to the cart.

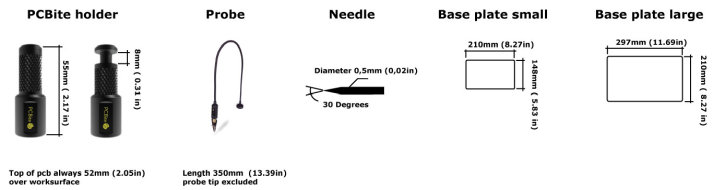

2 Base Plate Sizes

PCBite Holders, Probes and needles

PC Bite PCB Managment Solution

Available, in inventory and Shipping Now!

The base plate

Short video

Tutorials and Reviews.
