Digitizers  GTCO Dakota
|
Dakota Pedestal
| |
Digitizer Workstation
The Dakota XJ series of Digitizer Pedestals are the Ultimate. Made from a heavy gauge steel these pedestals will support the largest and heaviest digitizers out there.

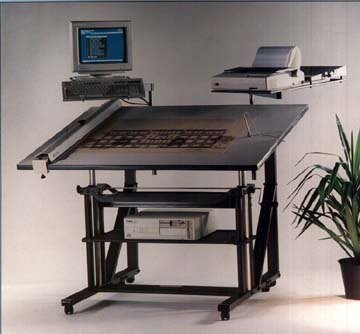

Above is a photograph depicting the XJ-1500A which encompasses all the options available for the XJ series.
The systems are sold as follows:
Pedestal
Monitor Arms ( 1 or 2 ) - Supports up to a 21" monitor
CPU Shelf
When purchasing a GTCO Digitizer please request the optional mounting brackets which will allow you to mount the tablets on either the Dakota or any of the other pedestals supplied by us. Most units are stocked in our warehouse.
Dakota also manufacture a unit with both motorized tilt and up/down capabilities, these units are intended for mounting very heavy digitizers, none of the GTCO tablets require this unit however if you own one of our competitors backlit units this motorized version will facilitate the use of it.
Side view of the XJ-5A Pedestal
View images of different accessories for the GTCO series of digitizers
|
|
ONLY MANUAL PEDESTALS ARE AVAILABLE - POWER LIFT
AND TILT MODELS HAVE BEEN DISCONTINUED.
|
| Interworld offers a selection of tablet stands for its large-format digitizers. These sturdy, adjustable stands provide a wide range of height and tilt settings to give the digitizer user a comfortable, non-fatiguing work area. Height adjustment ranges from 35.5 in/90.2 cm to 49.13 in/124.8 cm and tilt may be adjusted to provide an angle from zero (horizontal) to 80 degrees. |
Important Information about Digitizer Stands
 |
| |
• |
Only the specified stands should be used with the digitizers shown in the table below. |
| |
• |
Use of the wrong stand could result in digitizer damage. Interworld will not be responsible for damage to digitizers used with stands in an unapproved configuration.
|
| |
• |
Please contact your Interworld Sales Representative for additional information.
|
Current Summagraphics Models
Stand Type
Order No. |
SummaGrid VI Large-Format Digitizers |
| 24X36 |
36X48 |
44X60 |
Manual Lift / Manual Tilt
61405000001 |
APPROVED |
APPROVED |
APPROVED |
Current Calcomp Models
Stand Type
Order No. |
Drawingboard VI Large-Format Digitizers |
| 24X36 |
36X48 |
44X60 |
Manual Lift / Manual Tilt
61405000001 |
APPROVED |
APPROVED |
APPROVED |
Current GTCO Models
Stand Type
Order No. |
Super LII, Super LX, Super LIII, SLIV,
SLVI, Accutab and Surface Lit |
|
24X36
|
36X48
|
44X60
|
Manual Lift / Manual Tilt
61405000001 |
APPROVED |
APPROVED |
APPROVED |
GTCO Models require the MB-2436, MB-3648 or MB-4460Mounting Brackets
in order mount on the above pedestals
|
|
|
|
|
