High Voltage Impulse Current Shunts F Series


Current Viewing Resistors
Series F

t&m Logo

T&M Research Products

DESCRIPTION

Terminating type CVR with threaded stud and mounting flange input connections.



SPECIFICATIONS:

Click on the model number to download the technical drawing in PDF format

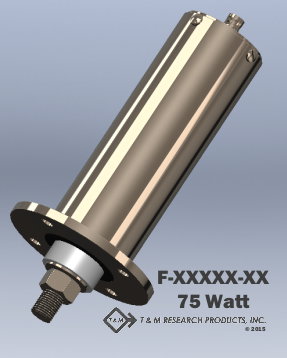

75 Watt Hi-Wattage Units - 8 Inch Overall Length
Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
F-250-1 .02 800  0.45 250
F-500-2 .01 200 2 500
F-1000-4 .005 48  8 1000
F-2000-8 .0025 12  30 2000
F-2500-10 .002 8  45 2500
F-4000-16 .00125 3.2 113 4000
F-5000-20 .001 2.2  164 5000
F-8000-32 .000625 1  250 8000
F-10,000-40 .0005 0.58 872 10000

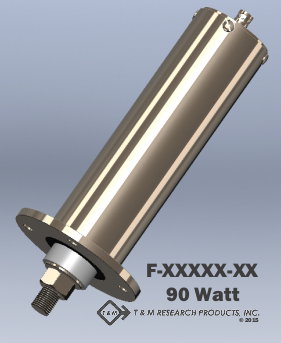

90 Watt Hi-Wattage Units - 8 7/8 Inch Overall Length
Model Resistance Ohms Bandpass MHz Risetime nsec Emax Joules
F-300-1 .025 800 0.45 300
F-3000-10 .0025  8 45  3000
F-16,000-40 .0008  .58 872  16000





Model

Hi-Wattage

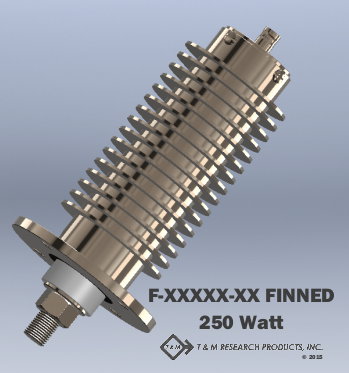

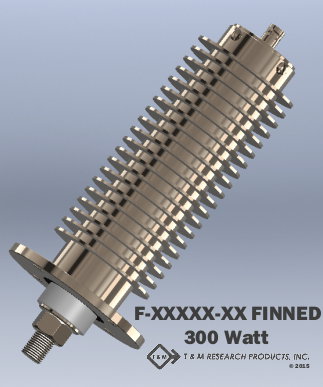

Finned Model
7 7/8" 250 watt 75 Watt 250 Watt
8 7/8" 300 watt 90 Watt 300 Watt



The Hi-Wattage model is standard.  The wattage's stated are based on heavy current connections with unconfined mounting.  The case temperature should not exceed 140 degrees F (60 degrees C).  Additionally the Finned Models require 150 cubic feet(4.2 cubicmeters) per minute air flow over their cases.  The ambient temperature should not exceed 86 degrees F (30 degrees C).  Operation above this temperature the wattage rating should be derated accordingly.





ORDERING INFORMATION:

When ordering specify model number, wattage, output connector and tolerance.

Example:F-5000-20, 75 Watts, BNC, 4%.
