Kvaser USBcan R V2
EAN
73-30130-00920-2
Kvaser USBcan R v2 is a lightweight, yet highly durable, two channel CAN bus interface. The IP65-rated housing is made of aluminum alloy, sealed with a heavy-duty polyurethane coating that assures reliable protection against water and dust ingress, and is vibration, shock and drop proof.
With a standard USB2.0 connection and two high-speed CAN channels in two separate 9-pin D-SUB CAN connectors, the Kvaser USBcan R v2 handles transmission and reception of standard and extended CAN messages, with a time stamp precision of 100 microseconds. Features include error frame detection and LED indicators showing power and CAN channel status.
|
Major Features
- Connect to two CAN channels simultaneously using just one device.
- IP65 rated lightweight aluminum housing, sealed with polyurethane coating.
- Capable of sending up to 15000 messages per second, per channel, each time-stamped with 100 microsecond accuracies.
- Quick and easy plug-and-play installation.
- Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power is taken from the USB bus.
- Detection of error frames.
- LED lights alert user to device status.
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Operating temperature range from -40 to 70°C.
Tech Specs
|
BITRATE
50-1000 kbps
|
TEMP RANGE
-40 - 70 °C
|
MESSAGES PER SECOND RECEIVE
15000 mps
|
|
MESSAGES PER SECOND SENDING
15000 mps
|
WEIGHT
176 g
|
LENGTH
200 mm
|
|
HEIGHT
17 mm
|
CHANNELS
2
|
CERTIFICATES
CE, RoHS
|
|
INTERFACES
USB
|
CATEGORIES
Interfaces, PC INTERFACES, CAN
|
OS
Win XP, Linux, Win 7, Win Vista, Win 10, Win
|
|
CONNECTORS

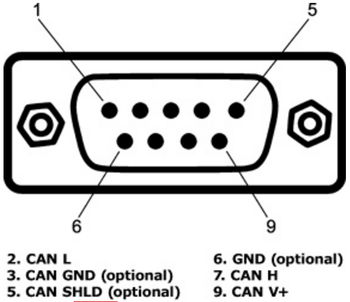

DSUB 9
|
BUFFERS
Auto RX Buffers, Auto TX Buffers, On Board Buffer
|
GALVANIC ISOLATION
Yes
|
|
ERROR FRAME GENERATION
No
|
ERROR COUNTERS READING
No
|
SILENT MODE
No
|
|
MATERIAL
Aluminium
|
SOUND
No
|
CURRENT CONSUMPTION
~ 5V and 130mA powered from the USB |
Downloads
| FIRMWARE |
| Kvaser Device Firmware |
Firmware Update tool for most Kvaser devices. |
VERSION
V4.17.849 |
| DRIVER |
| Kvaser DIADEM driver |
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. |
VERSION
V4.1.0
|
| Kvaser Drivers for Windows |
Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus. |
VERSION
V5.28.846 |
| Kvaser LINUX Driver and SDK |
Linux driver and SDK for most Kvaser devices. |
VERSION
V5.28.846 |
| KVASER SOFTWARE |
| Kvaser CANKing |
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus. |
VERSION
V6.11.788 |
| DEVELOPMENT KITS AND TOOLS |
| Kvaser CANlib SDK |
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C , C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately. |
VERSION
V5.28.846 |
| Kvaser LabView VI Library for CAN |
Library for National Instrument's LabView version for all Kvaser CAN hardware. |
VERSION
V6.1.0 |
| DOCUMENTATION |
| Kvaser USBcan R V2 Users Guide |
Kvaser USBcan R V2 User's Guide |
VERSION
V3.1.190512 |
|
|
|
|
|
