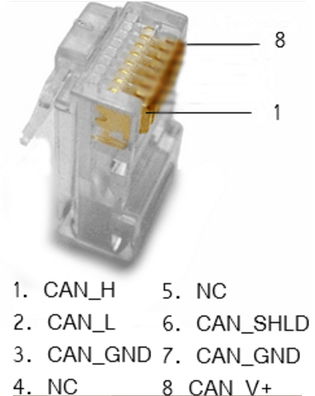

kvaser_usbcan_professional_rj45   kvaser_usbcan_professional_rj45Plug
Kvaser Logo




Kvaser USBcan Professional RJ45

**END OF LIFE PRODUCT. PLEASE SEE NEWEST REPLCEMENT: USBCAN PRO 5XHS**

EAN

73-30130-00413-9

The Kvaser USBcan Professional RJ45 is a high performance, two channel CAN (controller area network) bus interface. A standard USB1.1 connection enables several interfaces to be easily connected to a PC. Standard RJ45 connectors allow the user to connect to the CANbus via ethernet port.



Major Features

  • Two high-speed channels with ISO 11898-2 compliant CAN transceivers.
  • RJ45 connectors on both channels.
  • Supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Automatic and accurate clock synchronization between several Kvaser USBcan Professional interfaces through Kvaser MagiSync™.
  • Quick and easy plug-and-play installation.
  • When combined with the Kvaser Linx, it also supports the J1587 bus.
  • CAN messages time-stamped and synchronized with a precision of 2 microseconds.
  • Silent mode for analyzing tools.
  • Galvanic isolation of the CAN bus driver stage to protect the hardware.
  • Designed for USB 2.0, backward compliant with USB 1.1.
  • Large on-board RAM buffer for CAN message.
  • Plastic housing with dimension W*L*H about 50*90*25 mm (approx 2 x 3,5 x 1 inch).
  • A practically unlimited number of Kvaser USBcan Professional devices can be connected via standard USB hubs for simultaneous use on a single PC.
  • Excellent error handling.
  • Labeled CAN channel for easy identification of the supported physical layer.



Tech Specs

BITRATE

5-1000 kbps

TEMP RANGE

-40 - 85 °C

MESSAGES PER SECOND RECEIVE

20000 mps

MESSAGES PER SECOND SENDING

20000 mps

WEIGHT

150 g

LENGTH

90 mm

HEIGHT

25 mm

CHANNELS

2

CERTIFICATES

RoHS

INTERFACES

USB

CATEGORIES

Interfaces, PC Interfaces

OS

Win Vista, Win 8, Win 7, Win XP

CONNECTORS

RJ45

BUFFERS

Auto RX Buffers, Auto TX Buffers, On Board Buffer

GALVANIC ISOLATION

Yes

ERROR FRAME GENERATION

Yes

ERROR COUNTERS READING

Yes

SILENT MODE

Yes

MATERIAL

-

SOUND

No





Downloads

FIRMWARE
Kvaser Device Firmware Firmware update for Kvaser Leaf (all types), Kvaser Memorator Professional, Kvaser Memorator SemiPro, Kvaser Memorator Light, Kvaser USBcan Professional, and Kvaser BlackBird. VERSION
V3.5.621
DRIVER
Kvaser DIADEM driver This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. VERSION
V1.0.0
Kvaser Drivers for Windows Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
VERSION
V5.12.0
Kvaser LINUX Driver and SDK Linux driver and SDK for most Kvaser devices. VERSION
V5.12.0
KVASER SOFTWARE

Kvaser CANKing

A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work. VERSION
V5.6.57
DEVELOPMENT KITS AND TOOLS
Kvaser CANlib SDK Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately. VERSION
V5.12.0
Kvaser LabView VI Library for CAN Library for National Instrument's LabView version for all Kvaser CAN hardware. VERSION
V6.1.0
DOCUMENTATION
Kvaser USBcan Comparison Table

Kvaser USBcan Product Comparison Table

VERSION

V1.0.0

Kvaser USBcan Professional Users Guide Kvaser USBcan Professional User's Guide VERSION
V5.1.0
