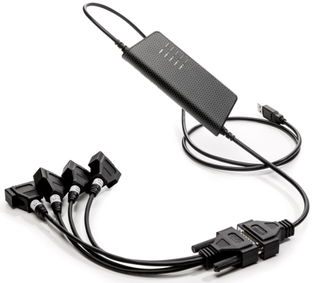

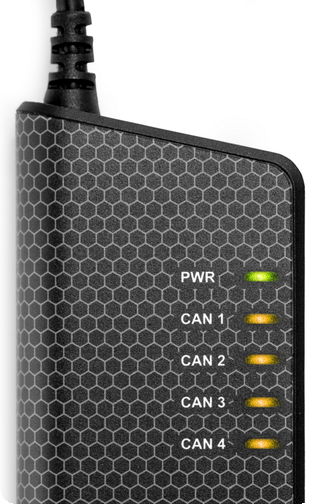

The USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors.
• Low cost USB CAN interface.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Simultaneous operation of multiple devices.
• Includes 4 channel breakout cable.
Tech Specs
BITRATE
50-1000 kbps
TEMP RANGE
-19 - 70 °C
MESSAGES PER SECOND RECEIVE
8000 mps
MESSAGES PER SECOND SENDING
8000 mps
WEIGHT
150 g
LENGTH
170 mm
HEIGHT
68 mm
CHANNELS
4
CERTIFICATES
RoHS
INTERFACES
USB
CATEGORIES
CAN, Interfaces, PC Interfaces
OS
Win Vista, Win 8, Win 7, Win XP
CONNECTORS
26-pin HD D-SUB
GALVANIC ISOLATION
Yes
ERROR FRAME GENERATION
No
ERROR COUNTERS READING
No
SILENT MODE
No
MATERIAL
-
SOUND
No
CURRENT CONSUMPTION
max 500 mA
Downloads
DRIVER
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
