Kvaser Mini PCI Express HS v2

EAN: 73-30130-01038-3

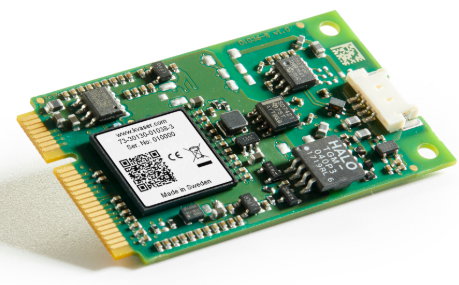

The Kvaser Mini PCI Express HS v2 is a small (30 x 51mm), yet advanced, real time CAN interface that adds one high speed CAN or CAN FD channel to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.



Major Features

  • Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs).
  • High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000
  • kbit/s for Classical CAN and up to 8Mbit/s for CAN FD.
  • High transmission rate of up to 20000 messages/s.
  • Time stamp accuracy of 1 µs.
  • Galvanic isolation.
  • Suitable for industrial environments.

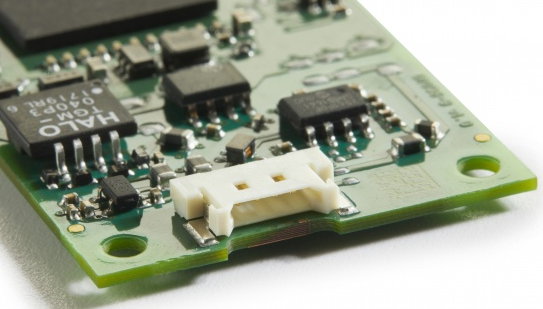

  • Low profile mini PCI Express-compliant 4-pin Molex connector provides CAN channel access.

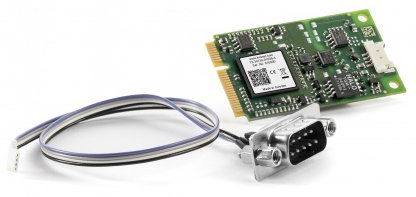

  • Includes Molex to DSUB9 cable adapter.
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
  • Operates over the industrial temperature range of -40 to 85°C.
  • Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS
  • board. Windows DLL library and examples included.
  • Supports Windows Vista or later.
  • Linux drivers and a dedicated SDK are available as a separate download.
  • Extended operating temperature range from -40 to 85 °C.
  • Note: Kvaser's already-existing Kvaser Mini PCI Express HS and Kvaser Mini PCI Express 2xHS products will remain available for sale. The primary difference is that these previous versions utilize the USB system bus for communication with the PC.





Tech Specs



BITRATE

50-8000 kbps

TEMP RANGE

-40 - 85 °C

MESSAGES PER SECOND RECEIVE

20000 mps

MESSAGES PER SECOND SENDING

20000 mps

WEIGHT

5g

LENGTH

51 mm

HEIGHT

5 mm

CHANNELS

1

CERTIFICATES

CE, RoHS


INTERFACES

Mini PCI Express



CATEGORIES

PC INTERFACES

OS

Win 7, Win Vista, Win 10, Win 8

TIMESTAMP R (µ)

1 µs

GALVANIC ISOLATION

Yes

ERROR FRAME GENERATION

Yes

ERROR COUNTERS READING

No

SILENT MODE

Yes

MATERIAL

-

SOUND

No

CURRENT CONSUMPTION

Typically 700 mW idle plus max 150 mW per channel, i.e. max 850 mW for a
single channel interface. Only uses 3.3 V.

CONNECTORS

DSUB 9
