Kvaser Logo

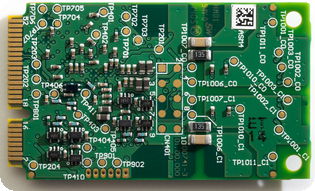

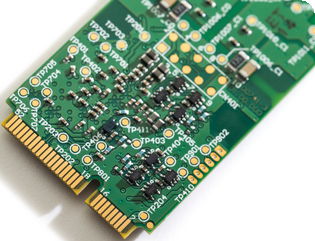

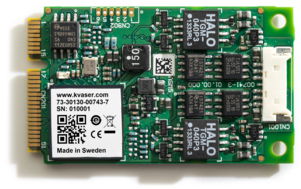

Kvaser Mini PCI Express 2xHS

EAN: 73-30130-00743-7​

Measuring 30 x 51mm, the Kvaser Mini PCI Express 2xHS is a highly integrated CAN (controller area network) add-on board that adds two high speed CAN channels to any standard computer board with mini PCI Express capability. Offering silent mode, error frame detection and an on-board buffer, the small form factor board fits any embedded data acquisition systems, but is particularly suitable for fleet management to monitor key parameters such as fuel economy, engine speed, braking and accelerator pressure, and gearshift patterns.



Major Features

  • Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s.
  • Time stamp accuracy is 25 µs.
  • Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.
  • A 7 pin Molex connector provides dual CAN channel access.
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
  • Operates over the industrial temperature range of -40 to 85°C.
  • Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
  • Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download



Tech Specs

BITRATE

40-1000 kbps

TEMP RANGE

-40 - 85 °C

MESSAGES PER SECOND RECEIVE

20000 mps

MESSAGES PER SECOND SENDING

18000 mps

WEIGHT

6 g

LENGTH

50 mm

HEIGHT

5 mm

CHANNELS

2

CERTIFICATES

CE, RoHS

INTERFACES

Mini PCI Express

CATEGORIES

Interfaces, PC Interfaces

OS

Win 10, Win 8, Win 7, Win XP

BUFFERS

On Board Buffer

GALVANIC ISOLATION

Yes

ERROR FRAME GENERATION

No

ERROR COUNTERS READING

No

SILENT MODE

Yes

MATERIAL

-

SOUND

No

CURRENT CONSUMPTION

Typical values are (@ 3.3 V from Mini PCI Express slot): 180 mA (Kvaser Mini PCI Express HS), 280 mA (Kvaser Mini PCI Express 2xHS)
