Kvaser Memorator Professional 5xHS

EAN



73-30130-00778-9

Kvaser Memorator Professional 5xHS is a five channel, high performance, CAN (controller area network) bus interface and standalone datalogger that allows users to monitor and collect data from up to five CAN channels using just one device. Standalone mode logs data to an SD card; interface mode connects to the PC via USB.

Configurable using Kvaser's Memorator Config Tool, Memorator Professional 5xHS is also capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied.



Major Features

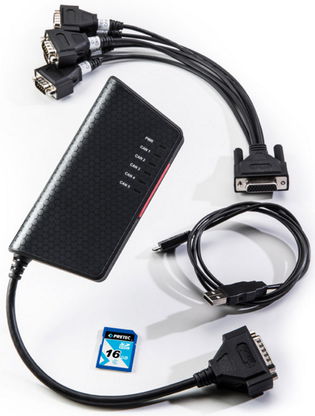

  • Monitor 5 CAN channels simultaneously using just one device, or connect the USB cable with a single 9 pin DSUB for single CAN channel monitoring.
  • Automatically time synchronises the data transmitted and received across all five buses.
  • Built-in Kvaser MagiSync technology time synchronises with other Kvaser interfaces connected to the same PC, resulting in simpler and more accurate multichannel data capture.
  • Script functionality allows users to develop customised t-script applications written in the Kvaser t programming language.
  • Plug and play installation, and a comprehensive user guide to help make t script development quick and easy.

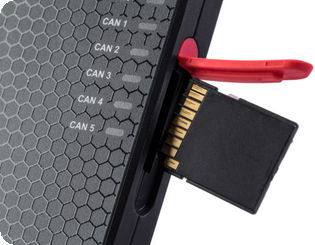

  • Log data to an expandable SD card slot.

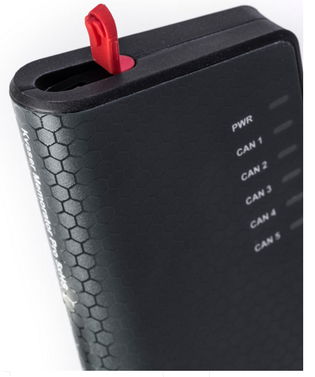

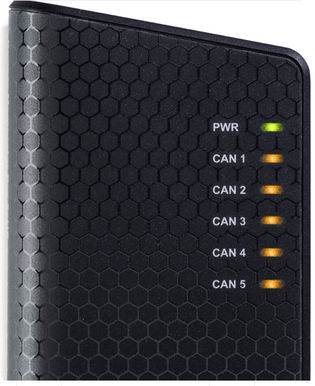

  • LED lights alert user to device status, including signalling a full SD card or card error.
  • Power derived from the USB connection, CAN or an in-built power supply.
  • CAN FD upgradeable via firmware.
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.



Tech Specs

BITRATE

40-1000 kbps

TEMP RANGE

-40 - 85 °C

MESSAGES PER SECOND RECEIVE

20000 mps

MESSAGES PER SECOND SENDING

20000 mps

WEIGHT

g

LENGTH

mm

HEIGHT

mm

CHANNELS

5

CERTIFICATES

CE, RoHS

INTERFACES

USB

CATEGORIES

Dataloggers, PC Interfaces

OS

Win Vista, Win 8, Win 7, Win XP

CONNECTORS

26-pin HD D-SUB

BUFFERS

Auto RX Buffers, Auto TX Buffers, On Board Buffer

GALVANIC ISOLATION

Yes

ERROR FRAME GENERATION

Yes

ERROR COUNTERS READING

Yes

SILENT MODE

Yes

SOUND

No





Downloads

DRIVER
Kvaser DIADEM driver This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. VERSION
V1.0.0
Kvaser Drivers for Windows Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
VERSION
V5.12.0
Kvaser LINUX Driver and SDK Linux driver and SDK for most Kvaser devices. VERSION
V5.12.0
FIRMWARE
Kvaser Firmware Update Tool Firmware Update tool for most Kvaser devices. VERSION
V4.2.331
KVASER SOFTWARE
Kvaser CANKing A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work. VERSION
V5.6.57
Kvaser Database editor Standalone installer for Kvaser Database Editor. VERSION
V2.4.109
Kvaser Memorator Configuration tool Configuration tool for
o Kvaser Eagle
o Kvaser Memorator Pro 5xHS
VERSION
V5.3.287
DEVELOPMENT KITS AND TOOLS
Kvaser CANlib SDK Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately. VERSION
V5.12.0
Kvaser LabView VI Library for CAN

Library for National Instrument's LabView version for all Kvaser CAN hardware.
VERSION
V6.1.0
DOCUMENTATION
Kvaser Database Editor Users Guide Kvaser Database Editor User's Guide VERSION
V2.0.0
Kvaser t Programming Language Documentation for the t programming language VERSION
V1.7.699
Memorator Pro 5xHS Users Guide Users guide for Kvaser Memorator Professional 5xHS VERSION
V1.7.699
Specification of Kvaser Memorator Device configuration XML format Specification of Kvaser Memorator Device configuration XML format VERSION
V1.7.699
