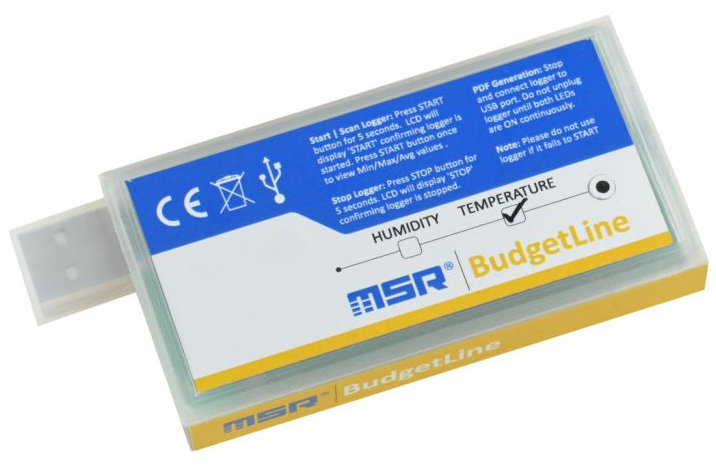

MSR83 Temperature Data Logger with Display

Reusable PDF Data Logger for Temperature, with Display


Compact temperature data logger, from the MSR BudgetLine range, with direct USB connection, Display and PDF reporting. Calibration certificate and software included.






Temperature Data Logger with Display

The reusable data logger MSR83 reliably documents the temperature and humidity conditions of sensitive goods during transport and storage, such as pharmaceuticals, chemicals and food. The logger includes a built in LCD to display measured temperature, allowing current, minimum maximum and average values to be shown from the logged data.

Recorded measured data can easily be transferred to a PC using the USB interface. When the data logger is stopped, a PDF report is automatically generated, which can be saved or printed for documentation purposes.

The MSR83 is DIN12830 and 21 CFR 11 compliant and conform to the EU regulations for storage and transport of cooled and frozen goods, as well as those of the US Food and Drug Administration (FDA).

Product features temperature data logger MSR83:



  • -30... 70 °C temperature range
  • life of the battery approx. 1 year, new battery replaceable by manufacturer
  • automatic PDF report generation of recorded measured data
  • clear status and alarm LEDs
  • 6-point-calibration certificate stored on the logger
  • free MSR BudgetLine software to configure the data logger on the PC
  • fast data transfer and straight forward assessment on the PC
  • free TLog Explorer software for further data analysis



Housing: PC, ABS Food Grade, IP54, not encapsulated
Size and Weight: 39 x 8 x 58 mm (W x H x L), approx. 18 g
Resolution:  0.1 °C
Memory capacity: 16 000 values
Alarm: min./max. value, indication on LED
Type of battery: 3.0 V lithium battery
Life of battery: approx. 1 year, new battery replaceable by manufacturer
Interface:  USB 2.0, A-Type
Further Data analysis: by means of the free TLogExplorer software
PDF-report: automatic
Norms:  DIN12830, 21 CFR Part 11























Sensor:  Measurement range: Accuracy: Measuring/storage rate:
Temperature:  -30… 70 °C  ±0.5 °C (-30… 70 °C)  1 min. up to 10 days




Order your MSR83 Today!

PLEASE CONTACT US TO ORDER!
