PicoScope Protective Rubber Case (PP691)
|
The PicoScope protective rubber case helps absorb potentially damaging physical shocks to your PicoScope 4000 Series oscilloscope whilst still giving you unobstructed access to all connectors.
A replaceable hanging bracket on the case also allows your PicoScope to be hung from a suitable hook - perfect for when you're short on space.
Buy Cover online:
|
* Oscilloscope not included. |
The following accessories may be used with the PicoScope 3424 and most other modern oscilloscopes.
MI007: 60 MHz Oscilloscope Probe x1/x10
This high quality general purpose oscilloscope probe, has a 60 MHz bandwidth. A two position slide switch allows attenuation of either x1 or x10 to be selected.
| MI007 Oscilloscope Probe Specifications |
| |
x1 |
x10 |
| Attenuation |
1:1 |
10:1 |
| Bandwidth |
DC to 15 MHz |
DC to 60 MHz |
| Rise time: |
23.3 ns |
5.8 ns |
| Input resistance |
1 MΩ |
10 MΩ |
| Input capacitance |
46 pF plus oscilloscope |
Approx 15 pF |
| Working voltage |
600 V DC incl Peak AC
(derating with frequency) |
| Cable length |
1.2 M (approx 3 ft 11 in) |
| Price |
|
Active Differential Oscilloscope Probes
Our active differential probes let you use a conventional earthed oscilloscope to measure signals that are not referenced to ground, including mains voltages. They can also be used to measure and observe the waveforms of three-phase supplies or the gate and control signals of semiconductor circuits. They are ideal for investigating motor speed controls, uninterruptible power supplies, switch mode power supplies and process controllers.
| Model |
Bandwidth |
Attenuation |
Differential voltage range |
Common mode voltage range |
Input impedance |
Price |
| TA041 |
25 MHz |
x10 / x100 |
±70 V / ±700 V |
±1400 V |
4 MΩ / 5.5 pF |
|
| TA057 |
25 MHz |
x20 / x200 |
±140 V / ±1400 V |
±1400 V |
4 MΩ / 5.5 pF |
|
| TA058 |
50 MHz |
x10 |
±70 V |
±700 V |
1.6 MΩ / 7 pF |
|
| TA044 |
70 MHz |
x100 / x1000 |
±700 V / ±7000 V |
±7000 V |
10 MΩ / 10 pF |
|
| TA043 |
100 MHz |
x10 / x100 |
±70 V / ±700 V |
±700 V |
4 MΩ / 7 pF |
|
| TA042 |
100 MHz |
x100 / x1000 |
±140 V / ±1400 V |
±1400 V |
4 MΩ / 7 pF |
|
| TA045 |
200 MHz |
x10 |
±60 V |
±20 V |
500 kΩ / 7 pF |
|
| TA046 |
800 MHz |
x10 |
±15 V |
±30 V |
100 kΩ / 2 pF |
|
BNC Attenuator Set
The TA050 attenuator set consists of four coaxial attenuators designed for use with signals up to 1 GHz. Each attenuator has a male and a female BNC connector.
Please note: The TA050 attenuators must be used with a matched 50-ohm source and load. If you wish to attenuate a signal before feeding it into a high-impedance measuring instrument, you must add a 50 ohm feedthrough terminator such as the Pico Technology TA051 feedthrough terminator.
| TA050 Specifications |
| Bandwidth |
DC to 1 GHz |
| Attenuation |
3 dB, 6 dB, 10 dB, 20 dB |
| Maximum power dissipation |
1 W |
| Input impedance |
50 Ω |
| Output impedance |
50 Ω |
| VSWR |
1.5:1 or better |
| Dimensions |
56 x 20 x 17 mm (approximately 2.2 x 0.8 x 0.7 in) |
| Connectors |
BNC, 1 male 1 female |
| Construction |
Shielded inner box with plastic shell |
| Weight |
24 g (approximately 0.85 oz) each |
| Price |
|
BNC terminators and leads
|

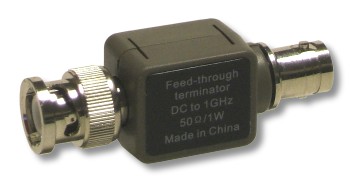

50 Ohm Feed Through Terminator |
All our BNC terminators, attenuators, leads and adaptors are compatible with 50 Ω BNC connectors.
Terminator: BNC feed-through 50 Ω 1 W 1 GHz
The TA051 feed-through attenuator is a coaxial terminator with BNC connectors. It is useful for connecting signals from 50 Ω sources into instruments with 1 MΩ impedance inputs, such as oscilloscopes.
| TA051 Feed-through terminator specifications |
| Bandwidth |
DC to 1 GHz |
| Maximum power dissipation |
1 W |
| Input impedance |
50 Ω |
| Resistance tolerance |
± 2% |
| Dimensions |
56 x 20 x 17 mm (approximately 2.2 x 0.8 x 0.7 in) |
| Connectors |
BNC, 1 male 1 female |
| Construction |
Shielded inner box with plastic shell |
| Weight |
24 g (approximately 0.85 oz) each |
Buy the TA051 Online.
 |
Hard Carrying Case ideal for 4000 Series Scope
|
Hard carry case - small
The MI136 is a protective hard carry case with foam cut-out ideal for storing and transporting a selection of PicoScope oscilloscopes and accessories including: PicoScope 4224 and 4424.
External dimensions: approximately 340 x 270 x 83 mm (13.4 x 10.6 x 3.3 in)
Buy the MI136 Online:
|
