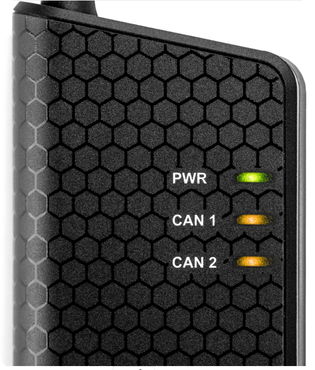

The USBcan Pro 2xHS v2 is a USB to dual channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.
• Supports CAN FD.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
• Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
• Simultaneous operation of multiple devices.
Tech Specs
BITRATE
50-1000 kbps
TEMP RANGE
-40 - 85 °C
MESSAGES PER SECOND RECEIVE
20000 mps
WEIGHT
150 g
LENGTH
170 mm
HEIGHT
25 mm
CHANNELS
2
CERTIFICATES
RoHS
INTERFACES
USB
CATEGORIES
CAN, Interfaces, PC Interfaces
OS
Win Vista, Win 8, Win 7, Win XP
CONNECTORS
DSUB 9
GALVANIC ISOLATION
Yes
ERROR FRAME GENERATION
Yes
ERROR COUNTERS READING
No
SILENT MODE
Yes
MATERIAL
-
SOUND
No
CURRENT CONSUMPTION
max 500mA
Downloads
DRIVER
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
