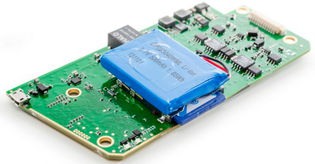

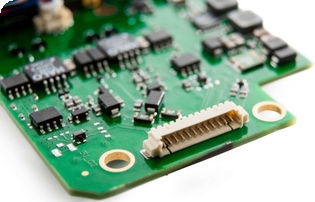

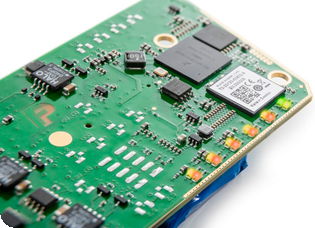

Kvaser Memorator Professional 5xHS CB is a five channel, high performance, CAN (controller area network) bus interface and standalone datalogger that allows users to monitor and collect data from up to five CAN channels using just one device. It is supplied 'bare board' i.e. without a housing, and can thus be built into any system. The Memorator Professional 5xHS CB is CAN FD-ready.
Configurable using Kvaser's Memorator Config Tool, Memorator Professional 5xHS CB is capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied. The device is also supported in CANlib, Kvaser’s universal software development kit.
Monitor 5 CAN channels simultaneously using just one device, or connect the USB cable with a single 9 pin DSUB for single CAN channel monitoring.
Automatically time synchronises the data transmitted and received across all five buses.
Built-in Kvaser MagiSync technology time synchronises with other Kvaser interfaces connected to the same PC, resulting in simpler and more accurate multichannel data capture.
Script functionality allows users to develop customised t-script applications written in the Kvaser t programming language.
Plug and play installation, and a comprehensive user guide to help make t script development quick and easy.
Log data to an expandable SD card slot.
LED lights alert user to device status, including signalling a full SD card or card error.
Power derived from the USB connection, CAN or an in-built power supply.
CAN FD upgradeable via firmware.
Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
Tech Specs
BITRATE
40-1000 kbps
TEMP RANGE
-40 - 85 °C
MESSAGES PER SECOND RECEIVE
20000 mps
MESSAGES PER SECOND SENDING
20000 mps
WEIGHT
g
LENGTH
mm
HEIGHT
mm
CHANNELS
5
CERTIFICATES
CE, RoHS
INTERFACES
USB
CATEGORIES
Dataloggers, PC Interfaces
OS
Win Vista, Win 8, Win 7, Win XP
CONNECTORS
26-pin HD D-SUB
BUFFERS
Auto RX Buffers, Auto TX Buffers, On Board Buffer
GALVANIC ISOLATION
Yes
ERROR FRAME GENERATION
Yes
ERROR COUNTERS READING
Yes
SILENT MODE
Yes
SOUND
No
Downloads
DRIVER
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Windows drivers for all our CAN hardware.
Please check release notes for information on which Windows versions are supported.
It also contain a driver for the virtual CAN bus.
A free of charge, general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 2000 or later is recommended but Windows 98 should also work.
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
